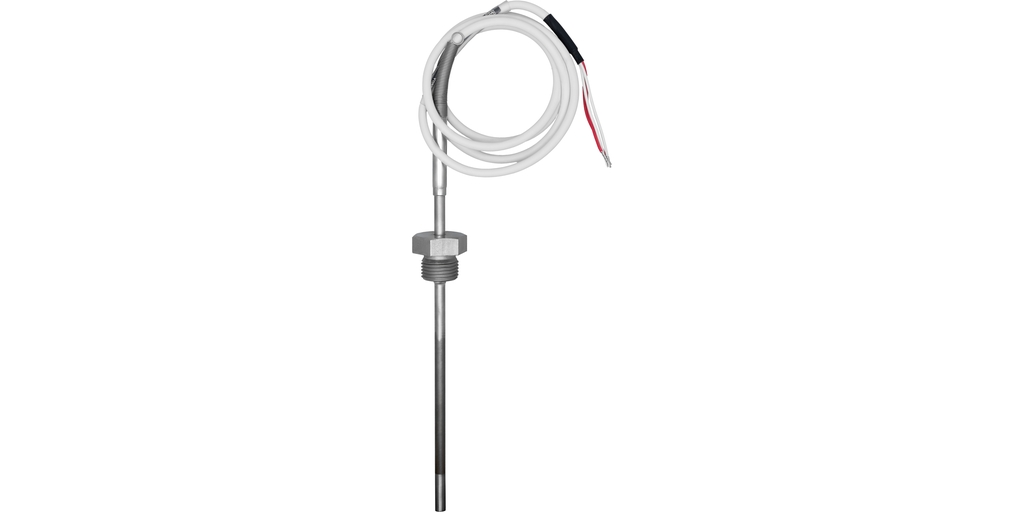

Pt100 RTD thermometer TST310 temperature cable probe

Egyszerű termékek
Könnyen kiválasztható, telepíthető és kezelhető

Műszaki kiválóság

Egyszerűség

Mi az a FLEX?

Alaptermékek
Megbízható, robusztus és kevés karbantartást igényel

Műszaki kiválóság

Egyszerűség

Mi az a FLEX?

Felső kategóriás termékek
Rendkívül funkcionális és kényelmes

Műszaki kiválóság

Egyszerűség

Mi az a FLEX?

Speciális termékek
Nagy igénybevétellel járó alkalmazásokhoz tervezve

Műszaki kiválóság

Egyszerűség

Kombinálható

Mi az a FLEX?

FLEX választék	Műszaki kiválóság	Egyszerűség
F L E X Fundamental választék Eleget tesz az Ön alapvető mérési igényeinek	Műszaki kiválóság	Egyszerűség
F L E X Lean választék Könnyen kezeli az Ön alapvető folyamatait	Műszaki kiválóság	Egyszerűség
F L E X Extended választék Innovatív technológiákkal optimalizálja az Ön folyamatait	Műszaki kiválóság	Egyszerűség
F L E X Xpert választék Megoldás az Ön legnagyobb kihívást jelentő alkalmazásaihoz	Műszaki kiválóság	Egyszerűség Kombinálható

Tudjon meg többet a FLEX választékról

Összehasonlít

iTHERM CableLine TST310 Cable probe

Metric RTD thermometer with connecting cable for use in many process and laboratory applications

Accuracy class A acc. to IEC 60751
class B acc. to IEC 60751
class AA acc. to IEC 60751

Response time t50 = 3 s
t90 = 6 s

Max. process pressure (static) at 20°C: up to 75 bar (depending on the process connection)

Operating temperature range PT 100:
-200 °C ...600 °C
(-328 °F ...1.112 °F)

Max. immersion length on request up to 10.000,00 mm (393,70'')

Product picture RTD thermometer cable probe TH12, US style

Összehasonlít

iTHERM CableLine TH12 Cable probe

Imperial RTD thermometer with connecting cable for use in many process and laboratory applications

Accuracy class A acc. to IEC 60751
class B acc. to IEC 60751

Response time 63% rt = 2,0 s

Max. process pressure (static) at 20 °C: 40 bar (580 psi)
depends on configuration

Operating temperature range PT100 WW:
-200 °C … 600 °C
(-328 °F … 1.112 °F)
PT100 TF:
-50 °C … 200 °C
(-58 °F … 392 °F)

Max. immersion length on request up to 96" (2439 mm)
others on request

Product picture thermocouple cable probe TSC310

Összehasonlít

iTHERM CableLine TSC310 Cable probe

Metric TC thermometer with connecting cable for use in many process and laboratory applications

Accuracy class 2 acc. to IEC 60584

Response time t50 = 1 s
t90 = 2 s

Max. process pressure (static) at 20 °C: 25 bar (363 psi)

Operating temperature range Type K:
max. 1.100 °C
(max. 2.012 °F)
Type J:
max. 750 °C
(max. 1.382 °F)

Max. immersion length on request up to 100.000,00 mm (3.937,01'')

Product picture thermocouple sensor cable probe TH52

Összehasonlít

iTHERM CableLine TH52 Cable probe

Imperial TC thermometer with connecting cable for use in many process and laboratory applications

Accuracy Standard acc. to ASTM E-230
Special acc. to ASTM E-230

Response time 63% rt = 0.3 s

Max. process pressure (static) at 20°C: 40 bar (580 psi)'
depends on configuration

Operating temperature range Type T:
-270 °C ...400 °C
(-454 °F ...752 °F)
Type J:
-210 °C ...1.200 °C
(-346 °F ...2.192 °F)
Type E:
-270 °C ...1.000 °C
(-454 °F ...1.832 °F)
Type K:
-270 °C ...1.372 °C
(-454 °F ...2.500 °F)
Type N:
-270 °C ... 1.300 °C
(-454 °F ...2.372 °F)

Max. immersion length on request up to 96" (2438 mm)
others on request

Összehasonlít

iTHERM CableLine TH56 Cable probe

Imperial TC thermometer with plug connection for use in many process and laboratory applications

Accuracy Standard acc. to ASTM E-230
Special acc. to ASTM E-230

Response time 63% rt = 0,3 s

Max. process pressure (static) Standard acc. to ASTM E-230
Special acc. to ASTM E-230

Operating temperature range Type T:
-270 °C ...370 °C
(-454 °F ...698 °F)
Type J:
-210 °C ...720 °C
(-346 °F ...1.328 °F)
Type E:
-270 °C ...820 °C
(-454 °F ...1.508 °F)
Type K:
-270 °C ...1.150 °C
(-454 °F ...2.102 °F)
Type N:
-270 °C ... 1.150 °C
(-454 °F ...2.102 °F)

Max. immersion length on request up to 96" (2438 mm)
others on request

Cable probes

Our product finder helps you to search for suitable measuring devices, software or system components via product characteristics. Applicator leads you through an individual product selection via application parameters.

Go to product finder Go to Applicator

About cable probes

Cable probes are compact RTD and TC thermometers equipped with a non-removable, flexible cable. They are available either without process connection for plugging in or with various standard process connections like compression fitting and thread or special options like weld-on pads or bayonet locks. The probe sheath of cable probes is in direct contact with the process medium. Depending on the application, the products of the Endress+Hauser iTHERM CableLine are available with different sheath and cable materials.

There are innumerous possible applications for cable probes. Typical exampleas are machinery, HVAC systems, storage temperature monitoring, laboratory equipment, autoclaves, bearings, high-pressure or cryogenic applications. Cable probes are an optimal choice for difficult installation conditions, such as applications where space is limited or the measuring location requires bending of the sensor. They can also be used for surface temperature monitoring of reactors.

Portfolio description

Various single or dual RTD / TC sensors for optimum measurement performance in all applications
Available with Ex approvals for use in hazardous areas (intrinsically safe or non-sparking)
Various MI cable and connection cable materials for different requirements
Without or with process connections - compression fitting, thread, other types available on request (e.g. weld-on pads)
Protection class IP66 / 67

Portfolio of Endress+Hauser standard cable sensors

iTHERM CableLine TST310

with special variants of process connections, such as weld-on pad or bayonet lock

Benefits

High accuracy and reliability in common processes
High flexibility through user-specific insertion lengths, process connections and materials
Cost-efficient
Easy installation
Robust & highly flexible (bendable)
Minimally invasive in small pipe diameters
